Types of Tips Used with the
Q-L Handpiece
3D Skin Treatment

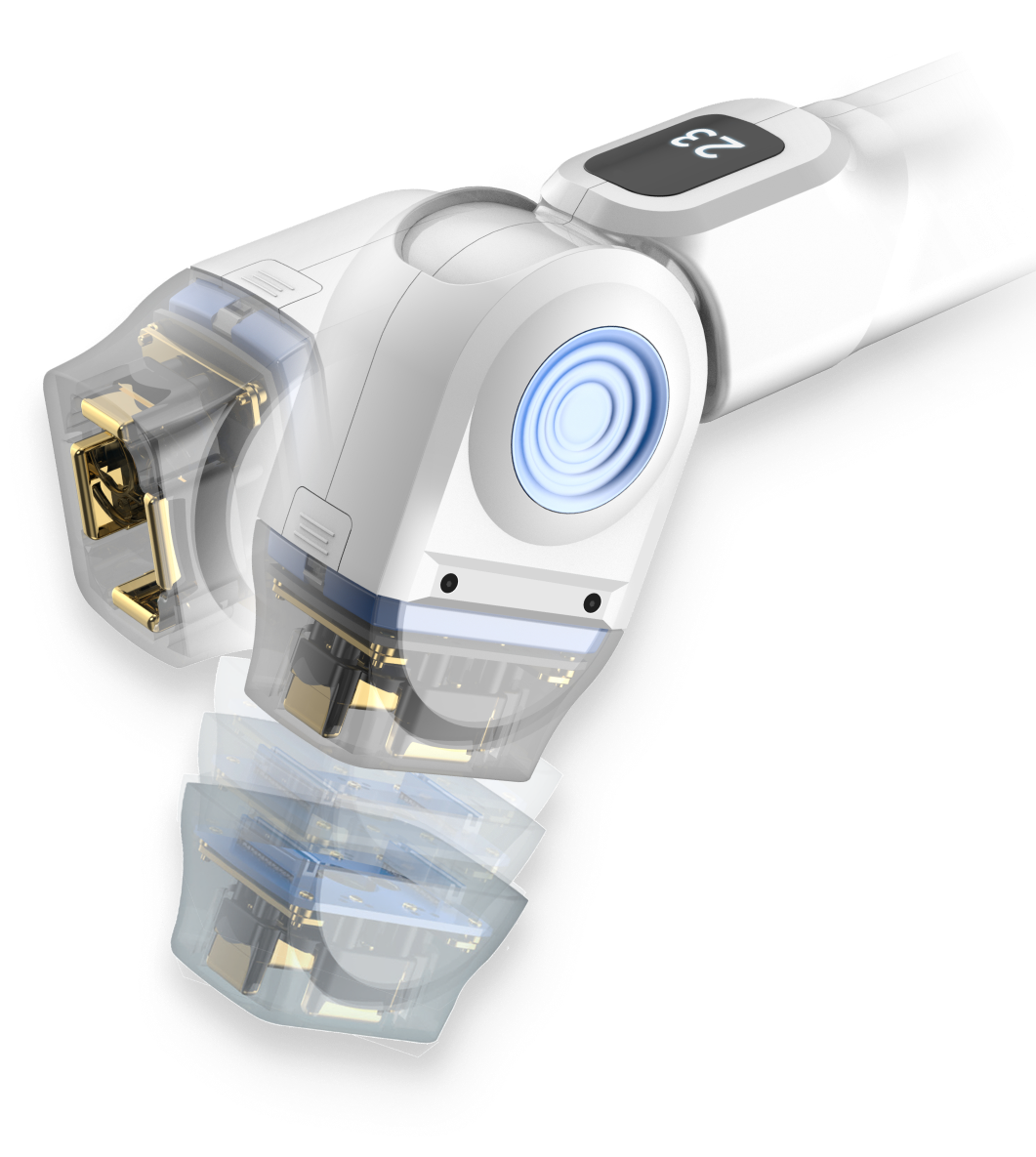

The Pia Quattro Vacuum Handpiece has a comfortable design that allows the angle to be adjusted.
The handpiece tip is detachable, and one can maximize results of the treat- ment by using the
variety of sizes depending on the area being treated.
-
4-Electrode Quattro-V(L)
Patent Registration
-
4-Electrode Quattro-V(S)
-
2-Electrode Two-E(E)
2-Electrode Two-E(E)
3D Skin Treatment
The Pia Quattro Vacuum Handpiece has a comfortable design that allows the angle to be adjusted.
The handpiece tip is detachable, and one can maximize results of the treat- ment by using the
variety of sizes depending on the area being treated.
Patent Registration
-
4-Electrode Quattro-V(L)
-
4-Electrode Quattro-V(S)
-
2-Electrode Two-E(E)
-
2-Electrode Two-E(E)
-
-
Quattro treatment takes energy dispersion shots. It's a powerful treatment based on skin protection.
Quattro treatment takes energy dispersion shots. It's a powerful treatment based on skin protection.
-

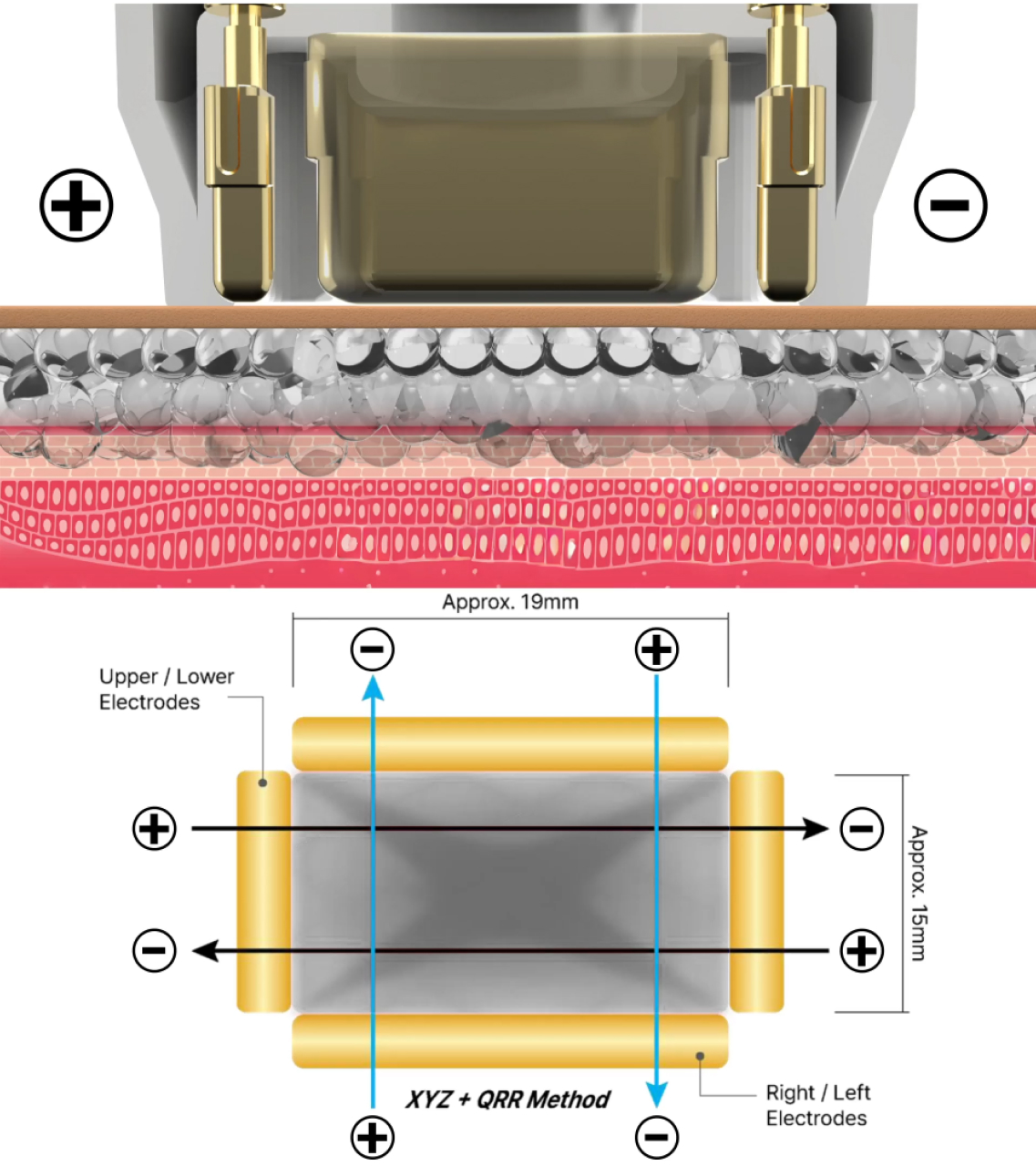

Quattro Electrodes
-
Parallel Electrodes

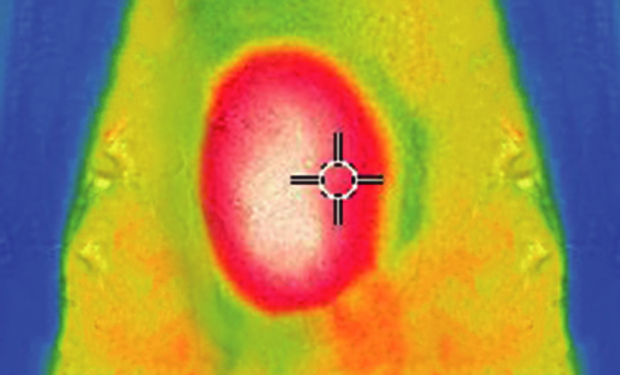

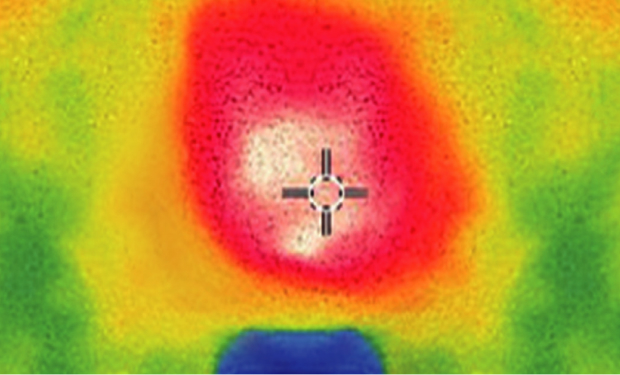

*The images taken with a thermal imaging camera.

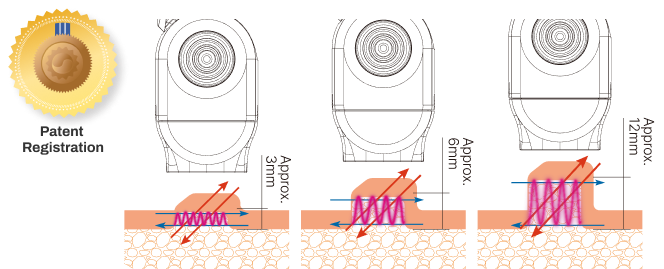

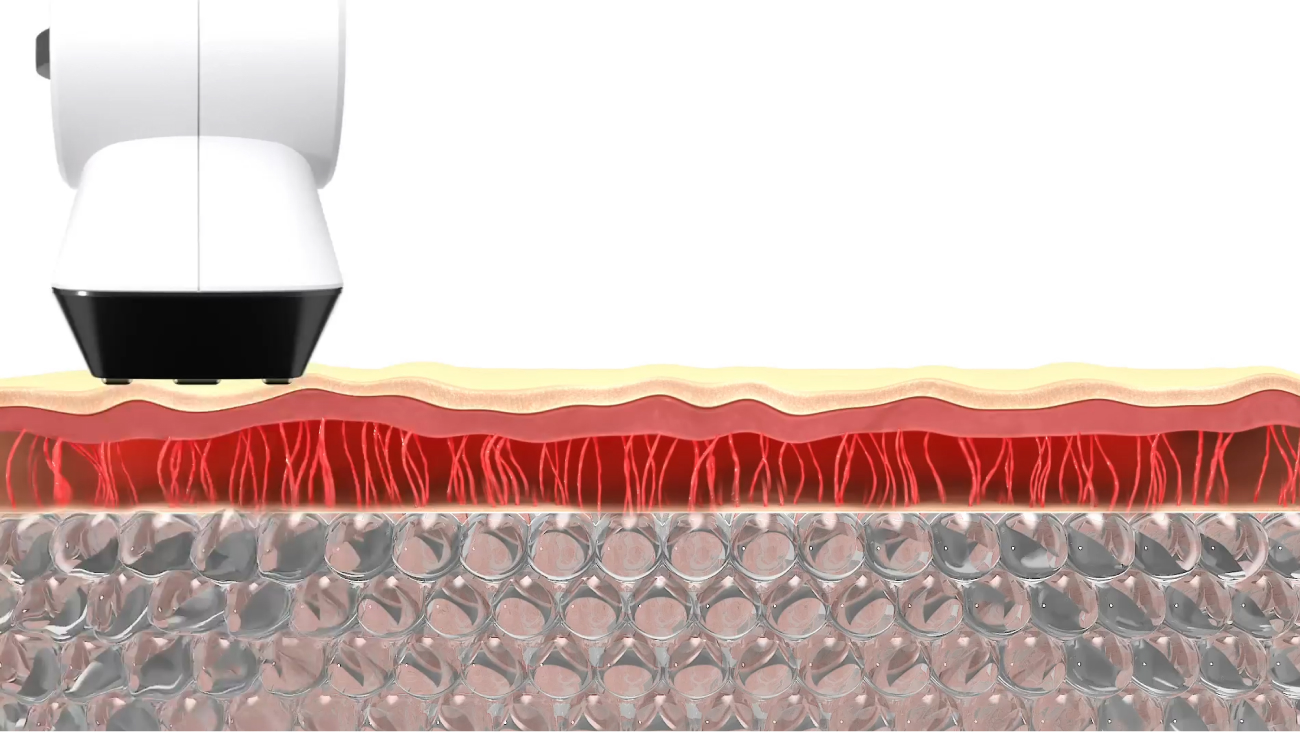

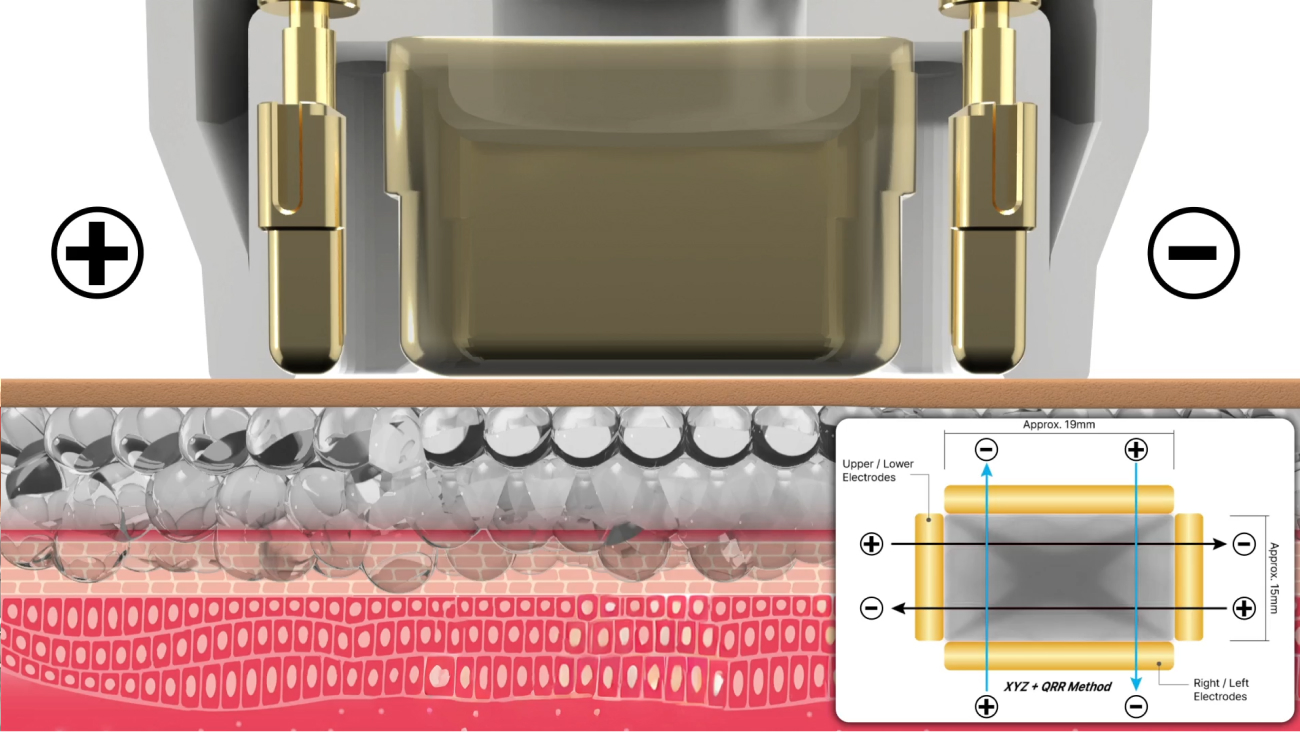

The technology of Q-L handpiece sucks skin fat in a vacuum and creates a three-dimensional shape of the fat.
During vacuum suction, the skin is pulled up to a maximum of approx.

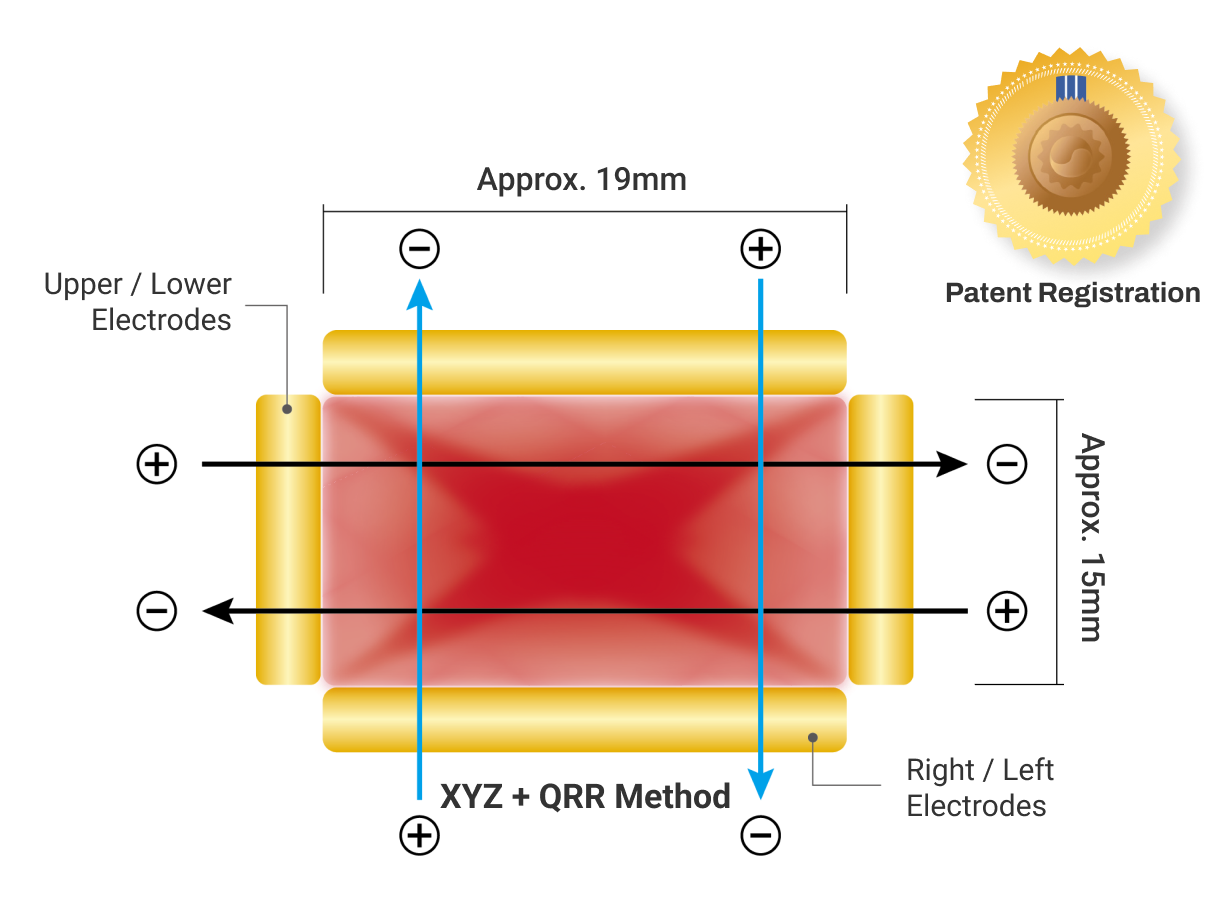

12 mm and RF high frequency is irradiated sequentially with QRR+ XYZ method.
I think the core of this technology is to use a small amount of RF high frequency energy to ensure the safety of human
body as much as possible and to allow you to experience the effects of the treatment across the entire frequency range without being limited by MHz.
(6.78MHz / 2.0MHz / 1.0MHz)
- ① No depth limit with frequency
- ② Using the left/right side energy irradiation method, not the vertical.
- ③ No limit to the depth of the skin that energy reaches.
- ④ Quick and accurate deliver the energy to the dermis of the skin.
- ⑤ Increase the energy concentration and prevent leaning the energy to one side.

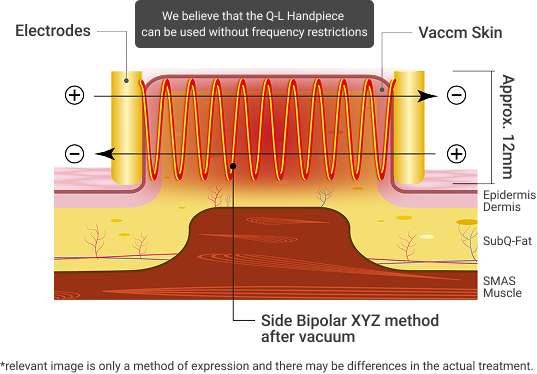

I don't think PIAMO Handpiece is limited by MHz(frequency).
The principle of this technology is that the depth of the skin is
determined according to the pressure intensity, and energy is
irradiated to the amount as much as the suctioned thickness.
-

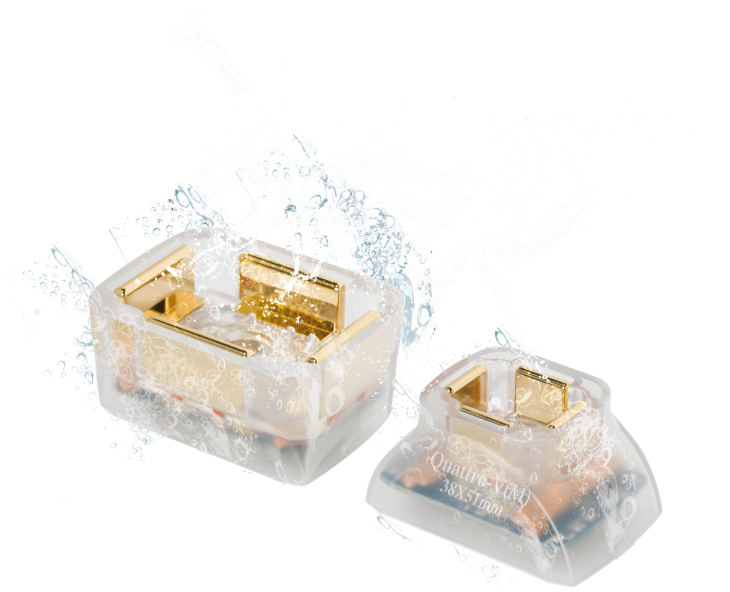

To Clean With Cleaning Liquid and Water
Cleaning Solution(approx. 32ml) + Water(approx. 948ml) = approx. 980ml
- Temperature : approx. 40°C
- Time : approx. 15min
-
To Clean With Water
Water= approx. 980ml
- Temperature : approx. 40°C
- Time : approx. 15min
